SikaRoof® VersiDrain® BG®

WATER ATTENUATING PLANTING TRAY MODULES FOR EXTENSIVE GREEN ROOFS

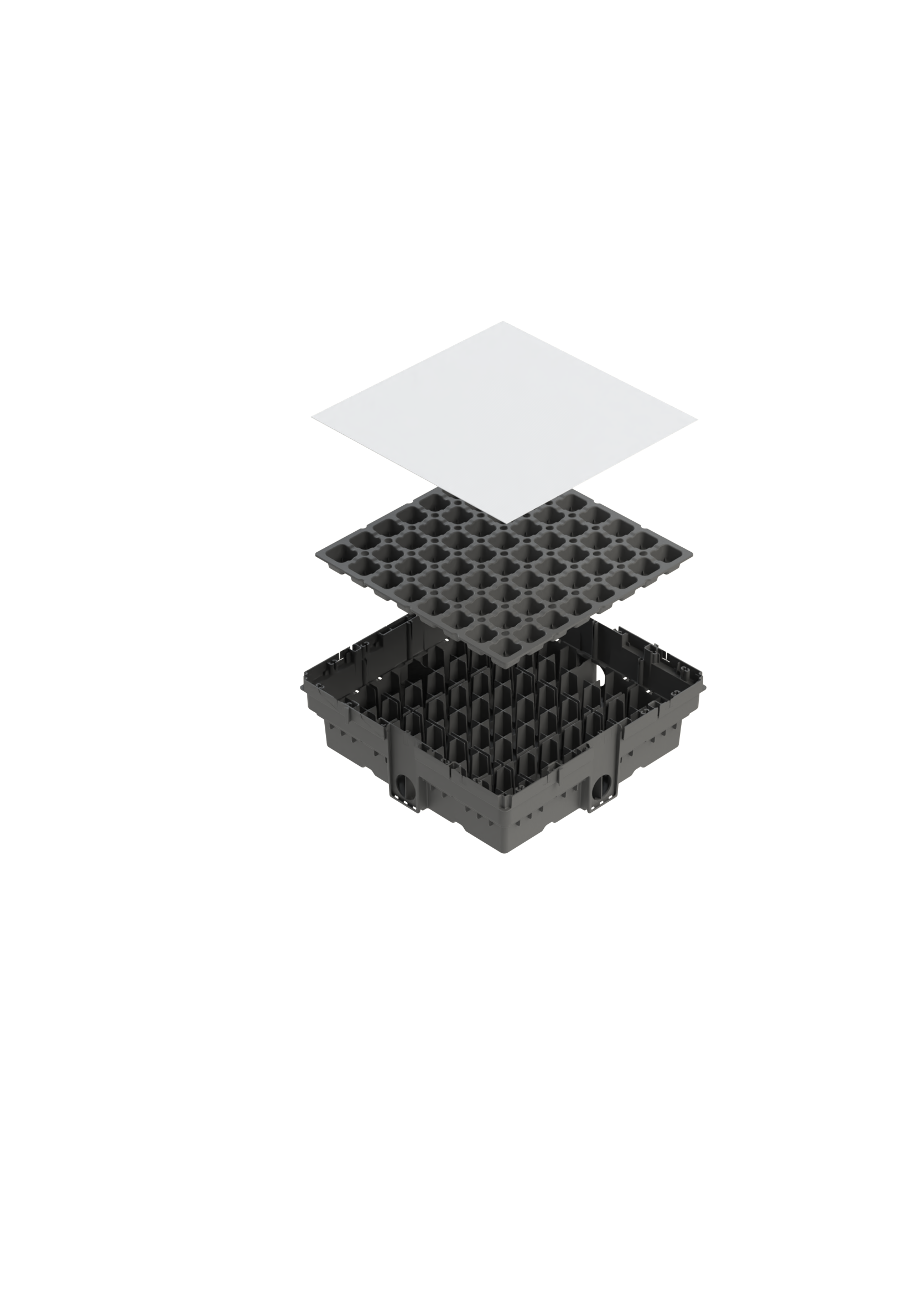

SikaRoof® VersiDrain® BG® is a lightweight planting tray designed for extensive blue green roofs and functions as a water retaining tray, water attenuation tray, and a drainage mat. Modules are manufactured from recycled polypropylene (PP), and consist of three layers: a planting layer, an irrigation reservoir area, and a stormwater attenuation layer. SikaRoof® VersiDrain® BG® interlock with adjacent modules for easy installation and has a smooth base for safe placement directly over the waterproofing membrane. Its internal irrigation reservoir promotes plant sustainability and its stormwater attenuation layer collects and slowly releases at-source stormwater to mititgate overburdening of drainage infrastructures amidst our current crisis.

  • Integrated water reservoir
  • Integrated water attenuation
  • Trays interlock adjacently for uniform coverage
  • Smooth base protects underlying waterproofing membrane
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Singapore Green Building Product (Leader) Cert. No. SGBP 3253
Product Information

Shelf Life

No expiration date if the product is stored in accordance with the storage conditions as stated in this Product Data Sheet

Storage Conditions

Bundles must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements

Dimensions

500 x 500 x 150 mm

Weight

12 kg/m2
Technical Information

Service Temperature

- 30 °C to 80 °C

Water retention

Water Reservoir Capacity

Water Retention Capacity

10 L/m2

40 L/m2



Application

Application steps

SUBSTRATE PREPARATION

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the water retention planting tray module.

APPLICATION

SikaRoof® VersiDrain® BG® shall be loosely laid and interlocked with adjacent modules connected by proprietary clips to form a continuous water retention and drainage layer without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. The installed water retention and drainage modules would then be covered with an approved or Sika® geotextile filter fabric before pouring the planting media into the modules.
