SikaRoof® VersiJack®

HEIGHT-ADJUSTABLE PEDESTAL SYSTEM FOR RAISED PAVERS AND DECKING FLOORING

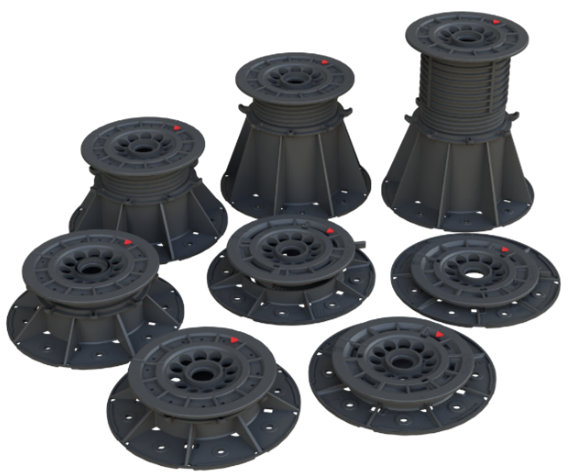

SikaRoof® VersiJack® is an adjustable pedestal designed to support and level pavers and decking in raised flooring applications. Pedestals are manufactured from recycled polypropylene (PP), while fire-rated pedestals are manufactured from modified reinforced thermoplastics, and it uses a stepjack or screwjack mechanism to provide precise millimetric adjustments from 13 mm to 281 mm, and has a locking ring to secure the pedestal height. Creating a raised flooring generates usable space through hiding M&E services, and the void area also provides an insulation layer. Raised floorings also improves surface drainage, while providing waterproofing protection, waterproofing maintenance access and efflorescence elimination.

  • Conceal M&E services
  • Promotes surface drainage
  • Better thermal insulation
  • Access to waterproofing membrane
  • Eliminates efflorescence
  • Recyclable components
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.

Storage Conditions

Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.

Diameter

Base Diameter

205 mm

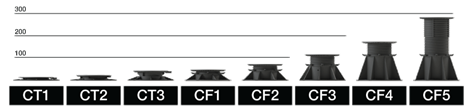

Height

CT1CT1 FRCT2CT2 FR
13 mm – 17 mm13 mm – 17 mm17 mm – 26 mm17 mm – 26 mm
CT3CT3 FRCF1CF1 FR
26 mm – 45 mm26 mm – 45 mm

37 mm – 50 mm

37 mm – 50 mm

CF2CF2 FRCF3CF3 FR

50 mm – 74 mm

50 mm – 74 mm

74 mm – 117 mm

74 mm – 117 mm

CF4CF4 FRCF5CF5 FR

117 mm – 201 mm

117 mm – 201 mm

196 mm – 281 mm

196 mm – 281 mm


Technical Information

Compressive Strength

CT1CT1 FRCT2CT2 FR
13 kN13 kN13 kN13 kN
CT3CT3 FRCF1CF1 FR
13 kN13 kN19 kN19 kN
CF2CF2 FRCF3CF3 FR
19 kN19 kN19 kN19 kN
CF4CF4 FRCF5CF5 FR
19 kN19 kN19 kN19 kN

Reaction to Fire

SikaRoof® VersiJack® CT1 FR, CT2 FR, CT3 FR, CF1 FR, CF2 FR, CF3 FR, CF4 FR, CF5 FR


Toxicity EmissionCIT < 0.75

Service Temperature

CT1CT1 FRCT2CT2 FR
- 30 °C to 80 °C-30 °C to 115 °C- 30 °C to 80 °C-30 °C to 115 °C
CT3CT3 FRCF1CF1 FR
- 30 °C to 80 °C-30 °C to 115 °C- 30 °C to 80 °C-30 °C to 115 °C
CF2CF2 FRCF3CF3 FR
- 30 °C to 80 °C-30 °C to 115 °C- 30 °C to 80 °C-30 °C to 115 °C
CF4CF4 FRCF5CF5 FR
- 30 °C to 80 °C-30 °C to 115 °C- 30 °C to 80 °C-30 °C to 115 °C

Application

Application steps

SUBSTRATE PREPARATION

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.

APPLICATION

SikaRoof® VersiJack® shall be loosely laid without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. For a bonded application, the pedestal may be adhered to the substrate with an approved adhesive. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
