SikaRoof® VersiPave®-12 P

ADJUSTABLE STEPJACK PEDESTAL SYSTEM FOR RAISED PAVERS FLOORING

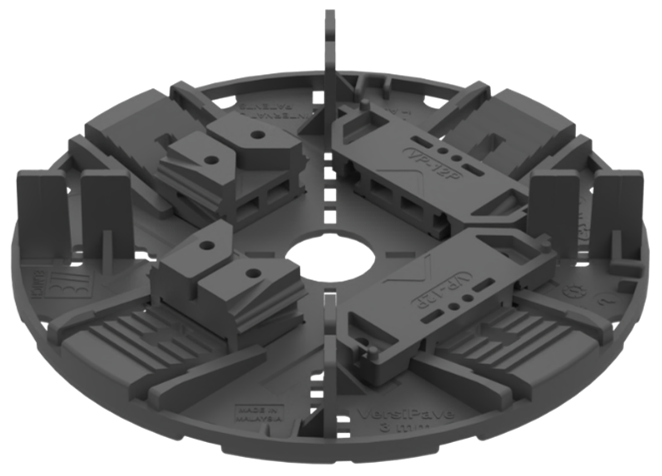

SikaRoof® VersiPave®-12 P is an adjustable pedestal designed to support and level pavers in raised flooring applications. Pedestals are manufactured from recycled polypropylene (PP), and it uses four independently adjustable chocks to accommodate uneven paver thicknesses. SikaRoof® VersiPave®-12 P may be broken into halves and quarters for greater material savings. Creating a raised flooring generates usable space through hiding M&E services, and the void area also provides an insulation layer. Raised floorings also improves surface drainage, while providing waterproofing protection, waterproofing maintenance access and efflorescence elimination.

  • Independent height adjustable chocks
  • In-built slope correction
  • Snap-break into halves and quarters
  • Conceal M&E services
  • Promotes surface drainage
  • Better thermal insulation
  • Access to waterproofing membrane
  • Eliminates efflorescence
  • Recyclable components
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Usage

Stepjack pedestal system for podiums, balconies, roof terraces and areas with hardscape finishes.

Advantages

  • Independent height adjustable chocks
  • In-built slope correction
  • Snap-break into halves and quarters
  • Conceal M&E services
  • Promotes surface drainage
  • Better thermal insulation
  • Access to waterproofing membrane
  • Eliminates efflorescence
  • Recyclable components
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range

Packaging

  • SikaRoof® VersiPave®-12 P 4 x 25
  • SikaRoof® VersiPave®-12 P 3 x 25

Refer to pricelist



Colour

Black circular stepjack pedestal

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.

Storage Conditions

Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.

Dimensions

165 Ø x 30 mm

Thickness

Spacer Tab Thickness

SikaRoof® VersiPave®-12 P 4 x 25SikaRoof® VersiPave®-12 P 3 x 25

4 mm

3 mm

Height

Spacer Tab Height

Height Range

25 mm

12 - 24 mm
Technical Information

Compressive Strength

36 kN

(ASTM D695-15)

Service Temperature

- 30 °C to 80 °C

Application

Application steps

SUBSTRATE PREPARATION

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.

APPLICATION

SikaRoof® VersiPave®-12 P shall be loosely laid without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. For a bonded application, the pedestal may be adhered to the substrate with an approved adhesive. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
