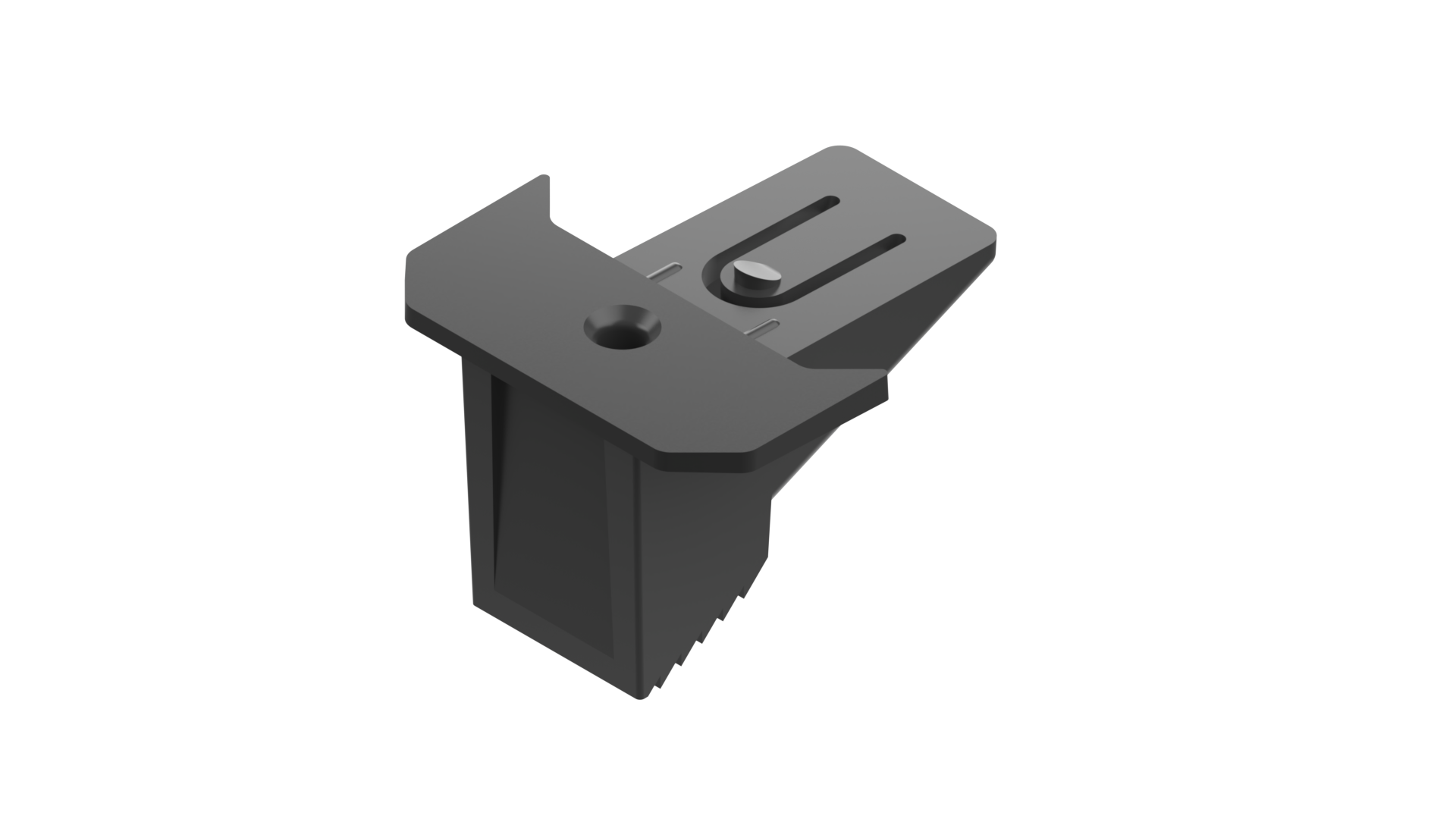

SikaRoof® VersiPave® Chock Extender
SikaRoof® VersiPave® Chock Extender is an extender for chocks of SikaRoof® VersiPave® to generate more paver support at the corners. Chock extenders are manufactured from recycled polypropylene (PP), while fire-rated chock extenders are manufactured from modified reinforced thermoplastics, and is inserted into the chocks of SikaRoof® VersiPave® at higher heights to prevent porcelain pavers from flipping if a downward point force is applied to the paver’s corner.
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Additional paver support for stepjack pedestal system for podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
- SikaRoof® VersiPave® Chock Extender
- SikaRoof® VersiPave® Chock Extender FR
Refer to pricelist
Colour
Black triangular prism stepjack chock
Product Details
APPROVALS / STANDARDS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf Life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage Conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Length
Chock Extension Length
16 mm
Reaction to Fire
SikaRoof® VersiPave® Chock Extender FR
| Toxicity Emission | CIT < 0.75 |
Service Temperature
| SikaRoof® VersiPave® Chock Extender | SikaRoof® VersiPave® Chock Extender FR |
| - 30 °C to 80 °C | - 30 °C to 115 °C |
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiPave® Chock Extender is inserted into the chocks of SikaRoof® VersiPave® for added paver support, which shall be loosely laid without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. For a bonded application, the pedestal may be adhered to the substrate with an approved adhesive. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
