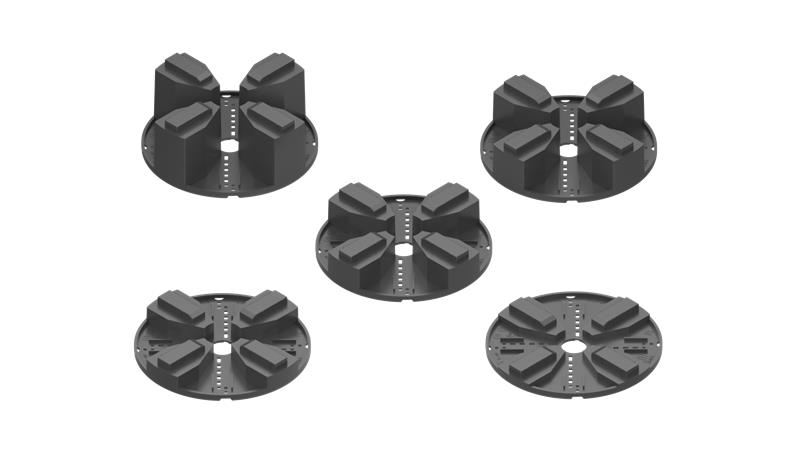

SikaRoof® VersiPave® Extender
SikaRoof® VersiPave® Extender is a fixed height extender designed to increase the height of SikaRoof® VersiPave® and SikaRoof® VersiPave® 24P to support and level pavers in raised flooring applications. Extenders are manufactured from recycled polypropylene (PP), while fire-rated extenders are manufactured from modified reinforced thermoplastics, and it has 4 columns that insert into the base of SikaRoof® VersiPave® and SikaRoof® VersiPave® 24P. SikaRoof® VersiPave® Extender may be broken into halves and quarters for greater material savings.
- Snap-break into halves and quarters
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Extender for a stepjack pedestal system for podiums, balconies, roof terraces and areas with hardscape finishes.Advantages
- Snap-break into halves and quarters
- Recyclable components
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
SikaRoof® VersiPave® Extender
| 10 | 20 | 30 | 40 | 60 |
| 10 FR | 20 FR | 30 FR | 40 FR | 60 FR |
Refer to pricelist
Colour
Black circular extender
Product Details
APPROVALS / STANDARDS
Singapore Green Building Product (Leader) Cert. No. SGBP 3254
Shelf Life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.
Storage Conditions
Product must be stored in their original packing, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.
Diameter
Base Diameter
165 mm
Height
| 10, 10 FR | 20, 20 FR | 30, 30 FR | 40, 40 FR | 60, 60 FR |
| 10 mm | 20 mm | 30 mm | 40 mm | 60 mm |
Reaction to Fire
10 FR, 20 FR, 30 FR, 40 FR, 60 FR
| Toxicity Emission | CIT < 0.75 |
Service Temperature
| 10, 20, 30, 40, 60 | 10 FR, 20 FR, 30 FR, 40 FR, 60 FR |
| - 30 °C to 80 °C | - 30 °C to 115 °C |
Application
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the pedestal base.
APPLICATION
SikaRoof® VersiPave® Extender is connected to the base of SikaRoof® VersiPave® and SikaRoof® VersiPave® 24P, which shall be loosely laid without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. For a bonded application, the pedestal may be adhered to the substrate with an approved adhesive. The first paver shall be installed to the correct elevation before using a levelling device to serve as a reference. Subsequent pavers shall be installed and checked to ensure consistent and correct elevation, till a sturdy and rigid raised flooring is obtained, free of rattling, squeaking or other noises.
