SikaRoof® VersiTank®-533

STORMWATER MODULES FOR ATTENUATION OR CONVEYANCE IN LANDSCAPE FEATURES

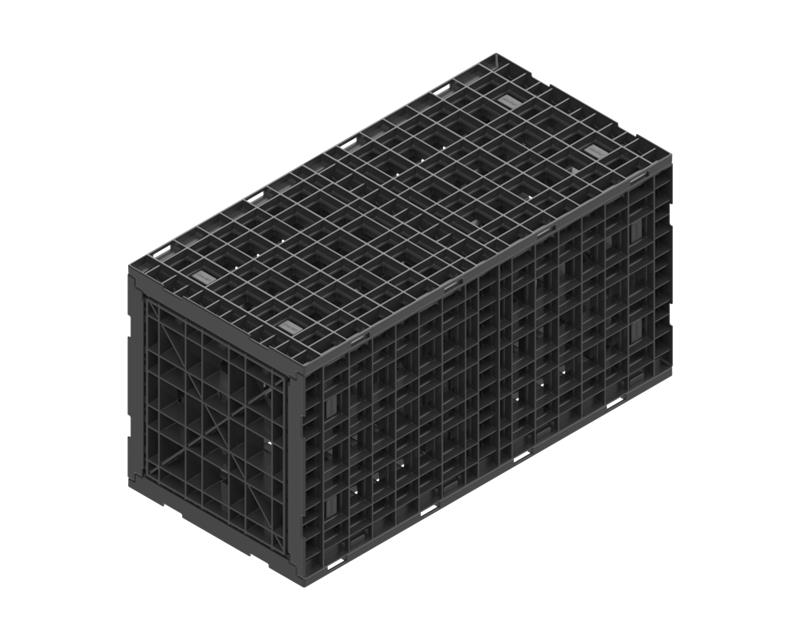

SikaRoof® VersiTank®-533 is a high strength drainage module manufactured from recycled polypropylene (PP), and constructed using 7 interlocking panels that forms 260 mm (horizontal) deep or 500 mm (vertical) deep at-source stormwater conveyance or attenuation systems.
SikaRoof® VersiTank®-533 forms a void area between landscape features and the substrate, providing excellent drainage, attenuation and conveyance.

  • High compressive strength
  • Smooth base, safe for direct laying onto waterproofing membrane
  • Interlocking module design ensuring continuous drainage
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Singapore Green Building Product (Leader) Cert. No. SGBP 3257
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet

Storage Conditions

Bundles must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements

Dimensions

500 x 240 x 260 mm

Weight

2.8 kg
Technical Information

Compressive Strength

Horizontal

Vertical

270 kN/m2

170 kN/m2

Service Temperature

- 30 °C to 80 °C

Volume

Surface Void Area

Internal Void Volume

80%

90%

Application

Application steps

SUBSTRATE PREPARATION

For on structure application, clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/ puncture to the drainage module.
For on grade application, pit area shall be excavated to pre-determined dimensions, and the base shall be compacted using a mechanical compactor. A layer of coarse aggregate according to specifications shall be spread over the base and compacted using a mechanical compactor. A layer of coarse sand typically 50 mm, shall be spread over the aggregate and compacted using a mechanical compactor.

APPLICATION

For infiltration tanks, SikaRoof® VersiTank®-533 shall be assembled and installed wrapped in an approved geotextile without any holes except for pipe connections. Sand shall then be spread over and around the pit area before backfilling of a minimum of 200 mm of soil / planting media.
For storage tanks, SikaRoof® VersiTank®-533 shall be assembled and installed wrapped in an approved membrane for walls and base, and an approved geotextile for the top, without any holes except for pipe connections. Sand shall then be spread over and around the pit area before backfilling of a minimum of 200 mm of soil / planting media.
