SikaRoof® StrataVault 30 Module

MODULE FOR STRUCTURAL ROOT CELL FOR LANDSCAPE FEATURES

SikaRoof® StrataVault 30 Module is a structural root cell module that links together to create a matrix structure. The module is manufactured from recycled polypropylene (PP), and is used to create a load bearing structure with a large void volume to accommodate vehicular traffic and healthy tree root growth concurrently. SikaRoof® StrataVault 30 Module is used in conjunction with SikaRoof® StrataVault Bridge, SikaRoof® StrataVault Connector, SikaRoof® StrataVault Base Plate, and SikaRoof® StrataVault Grate to create an extremely strong matrix made from recycled materials, while still leaving 90% of it's total volume for root growth and stormwater harvesting.

  • High compressive strength
  • Allows vehicular loads
  • Healthy tree root growth
  • Prevention of adjacent structural damage from roots
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Usage

Structural tree root cell for landscape features.

Advantages

  • High compressive strength
  • Allows vehicular loads
  • Healthy tree root growth
  • Prevention of adjacent structural damage from roots
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range

Packaging

  • SikaRoof® StrataVault 30 Module

Refer to pricelist



Colour

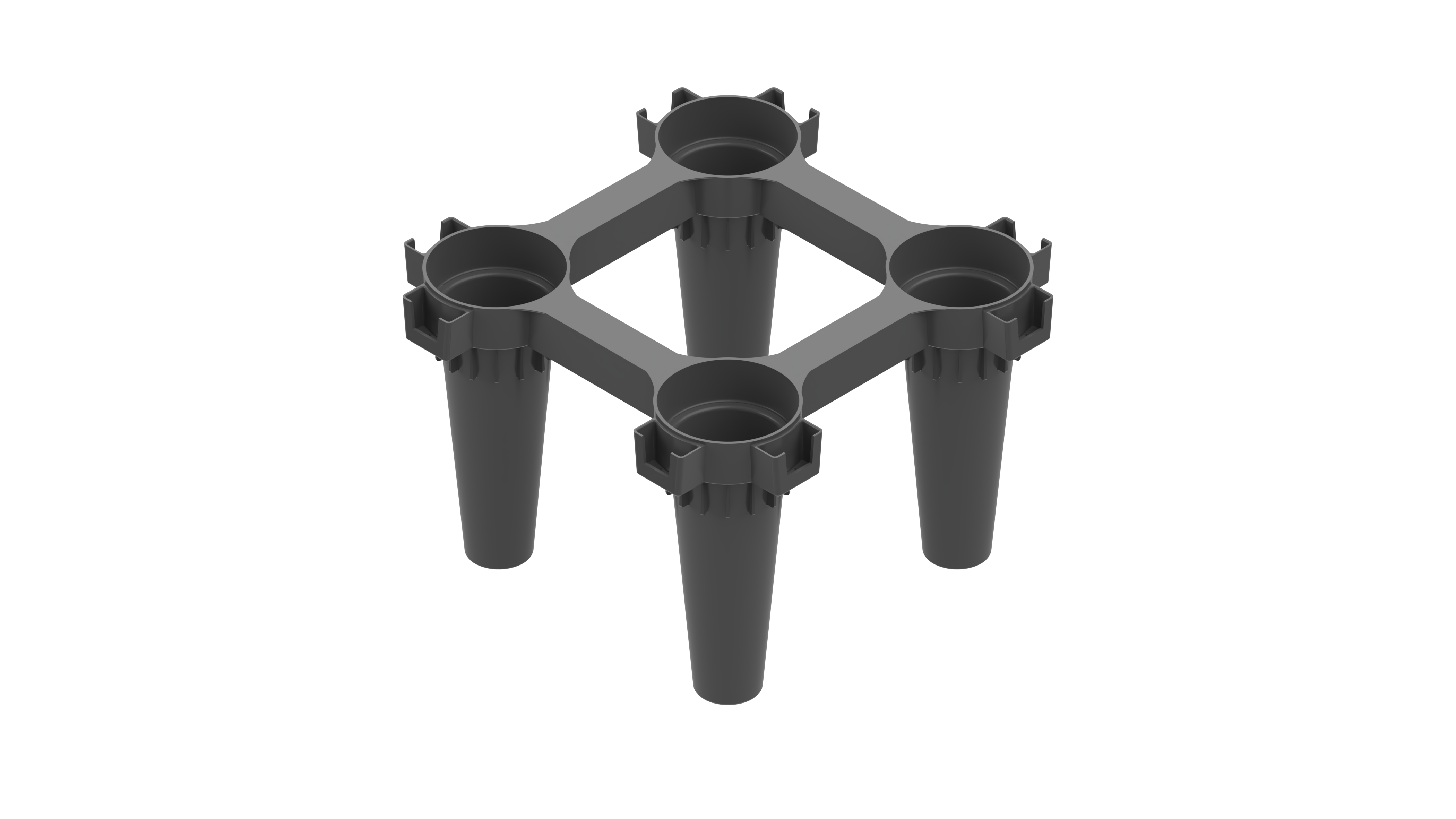

Black four-legged module

SG-020945051450244950

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Singapore Green Building Product (Leader) Cert. No. SGBP 4156
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet.

Storage Conditions

Products must be stored in their original packing, in their original box, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.

Dimensions

600 x 600 x 404 mm
Technical Information

Compressive Strength

300 kPa

Service Temperature

- 30 °C to 80 °C

Volume

Internal Void Volume

> 90%
