SikaRoof® VersiDrain® P-Anchor®

UNDER SCREED DRAINAGE MAT FOR EFFLORESCENCE MITIGATION

SikaRoof® VersiDrain® P-Anchor® is a lightweight under screed drainage mat installed between the structural slab and the covering screed, or between hardscape finishes. Modules are manufactured from recycled polypropylene (PP), and it allows entrapped water in the finishes’ cement screed to drain away through the perforations in the mat. SikaRoof® VersiDrain® P-Anchor® modules interlock with adjacent modules for easy installation and has a smooth base for safe placement directly over the waterproofing membrane. The frusto-pyramidal openings allow the screed that is poured onto SikaRoof® VersiDrain® P-Anchor® to flow through and bind to the substrate below, eliminating a floating slab.

  • Perforations to drain moisture within the screed
  • Drainage channel to facilitate water flow
  • Trays interlock adjacently for uniform coverage
  • Smooth base protects underlying waterproofing membrane
  • Frusto-pyramidal openings for bonding to structure
  • Cut to size for odd shaped layouts
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Usage

Under screed drainage mat for podiums, balconies, rooftops and areas with hardscape finishes requiring mitigation efforts against efflorescence by allowing entrapped moisture to escape.

Advantages

  • Perforations to drain moisture within the screed
  • Drainage channel to facilitate water flow
  • Trays interlock adjacently for uniform coverage
  • Smooth base protects underlying waterproofing membrane
  • Frusto-pyramidal openings for bonding to structure
  • Cut to size for odd shaped layouts
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range

Packaging

  • SikaRoof® VersiDrain® P-Anchor® : 20 pieces / bundle


Colour

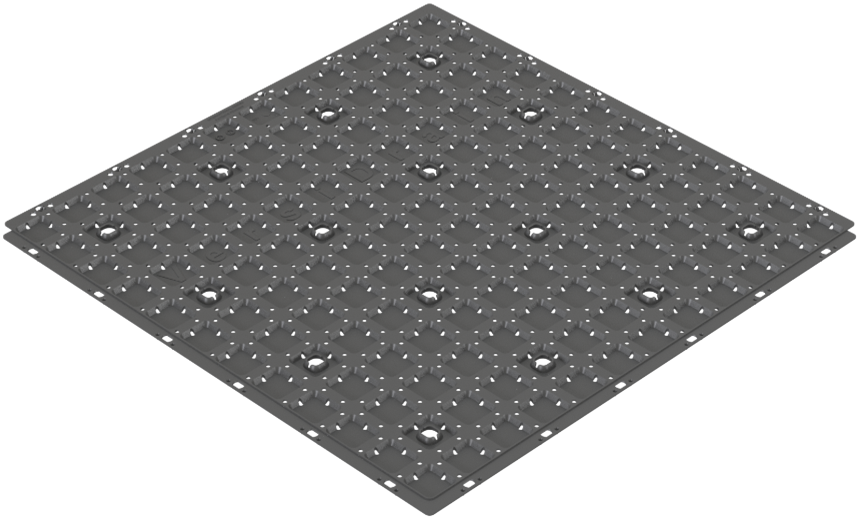

Black dimpled perforated square modules

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

Singapore Green Building Product (Leader) Cert. No. SGBP 3253
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet

Storage Conditions

Bundles must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements

Dimensions

500 x 500 x 6 mm

Weight

1.8 kg/m²
Technical Information

Compressive Strength

UnbondedBonded (Gr20 c/s screed)

800 kN/m²

15,000 kN/m²

Pull-Out Resistance

Pull out resistance to concrete

4 kN/m²

Service Temperature

-30 °C to 80 °C

Application

Application steps

SUBSTRATE PREPARATION

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the drainage module.

APPLICATION

SikaRoof® VersiDrain® P-Anchor® shall be loosely laid and interlocked with adjacent modules connected by proprietary in-built clips to form a continuous drainage layer without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. For a bonded application, the cement & sand screed shall be poured onto the drainage modules to receive tile finishes. For an unbonded application, insulation boards shall be installed on the drainage modules before applying tile adhesive and finishes.
