SikaRoof® VersiCell®

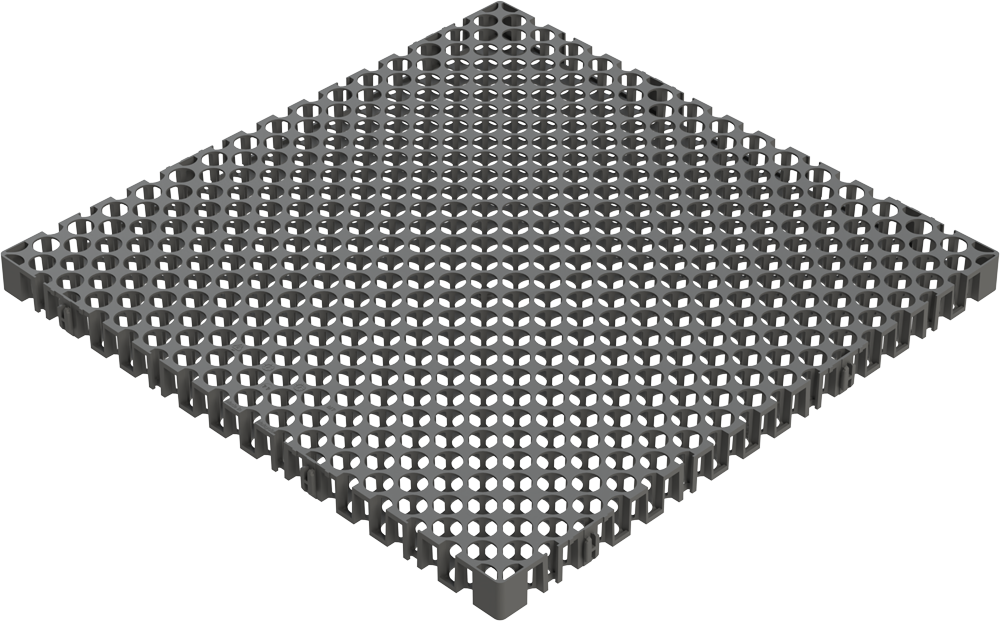

SikaRoof® VersiCell® is a lightweight, high-strength drainage module manufactured from recycled polypropylene (PP) with cells 20 mm or 30 mm high, providing large internal void volumes for increased drainage discharge capacity. SikaRoof® VersiCell® forms a hollow space between the structural element and the planting media, providing excellent drainage to prevent flooding of the landscape features.
- High compressive strength
- Smooth base, safe for direct laying onto waterproofing
- Interlocking modular design ensuring continuous drainage
- High discharge capacity
- Small surface perforations to prevent sagging of geotextile
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Usage
Drainage layer for intensive green roofs, podium landscapes, planter boxes and retaining wall backfill drainage systems in combination with a suitable geotextile as a filtration layer to prevent planting media from clogging the drainage layer.Advantages
- High compressive strength
- Smooth base, safe for direct laying onto waterproofing
- Interlocking modular design ensuring continuous drainage
- High discharge capacity
- Small surface perforations to prevent sagging of geotextile
- Resistant to biological attack by moulds and algae
- Chemically resistant to acids, alkalis, oils and soil chemicals
- Operates within a wide service temperature range
Packaging
| SikaRoof® VersiCell® 3050 | 0.5 m x 0.5 m x 0.24 m (8 pcs / bundle) |
| SikaRoof® VersiCell® 3025 | 0.5 m x 0.25 m x 0.48 m (16 pcs / bundle) |
| SikaRoof® VersiCell® 2050 | 0.5 m x 0.25 m x 0.16 m (8 pcs / bundle) |
Colour
Black and perforated square modules
Product Details
APPROVALS / STANDARDS
- Singapore Green Building Product (Leader) Cert. No. SGBP 3258
- Discharge Rate Testing in accordance to EWTCOI methodologies
Shelf Life
No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet
Storage Conditions
Bundles must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements
Dimensions
| SikaRoof® VersiCell® 3050 | 500 mm x 500 mm x 30 mm / pcs |
| SikaRoof® VersiCell® 3025 | 500 mm x 250 mm x 30 mm / pcs |
| SikaRoof® VersiCell® 2050 | 500 mm x 500 mm x 20 mm / pcs |
Weight
| SikaRoof® VersiCell® 3050 | 2.5 kg/m² |
| SikaRoof® VersiCell® 3025 | 2.5 kg/m² |
| SikaRoof® VersiCell® 2050 | 2.0 kg/m² |
Compressive Strength
| 800 kN/m² | (ASTM D695-15) |
Service Temperature
-30 °C to 80 °C
Volume
| Surface Void Area | Internal Void Volume |
| 62 % | 95 % |
Water flow capacity
Discharge Rate @ 1% Gradient
|
Application
Hole dimension
Perforation Size
≤ 20 mm Ø
SUBSTRATE PREPARATION
Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the drainage module.
APPLICATION
SikaRoof® VersiCell® shall be loosely laid and interlocked with adjacent modules connected by proprietary in-built clips to form a continuous drainage layer without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. The installed drainage modules would then be covered with an approved or Sika® geotextile filter fabric before pouring the planting media over the modules.
