SikaRoof® VersiCell® Flex

SUB-SURFACE DRAINAGE MODULES FOR DRAINAGE OF LANDSCAPE FEATURES

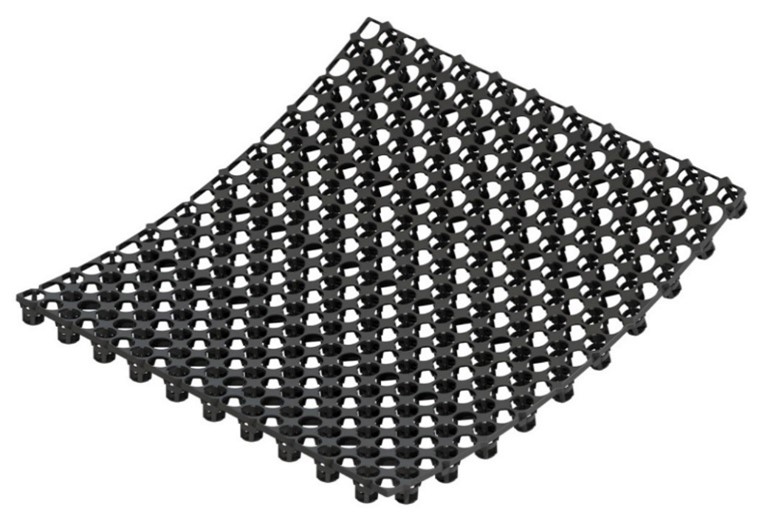

SikaRoof® VersiCell® Flex is a lightweight, high-strength drainage module manufactured from recycled polypropylene (PP) with cells 30 mm high, providing large internal void volumes for increased drainage discharge capacity. The module is flexible to accommodate curvatures of structural designs. SikaRoof® VersiCell® Flex forms a hollow space between the structural element and the planting media, providing excellent drainage to prevent flooding of the landscape features.

  • Flexible to conform with structural design
  • High compressive strength
  • Smooth base, safe for direct laying onto waterproofing
  • Interlocking modular design ensuring continuous drainage
  • High discharge capacity
  • Small surface perforations to prevent sagging of geotextile
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range
Product Data Sheet Show all documents

Usage

Drainage layer for intensive green roofs, podium landscapes and planter boxes in combination with a suitable geotextile as a filtration layer to prevent planting media from clogging the drainage layer.

Advantages

  • Flexible to conform with structural design
  • High compressive strength
  • Smooth base, safe for direct laying onto waterproofing
  • Interlocking modular design ensuring continuous drainage
  • High discharge capacity
  • Small surface perforations to prevent sagging of geotextile
  • Resistant to biological attack by moulds and algae
  • Chemically resistant to acids, alkalis, oils and soil chemicals
  • Operates within a wide service temperature range

Packaging

16 pieces / bundle



Colour

Black and perforated square modules

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Singapore Green Building Product (Leader) Cert. No. SGBP 3258
  • Discharge Rate Testing in accordance to EWTCOI methodologies
Product Information

Shelf Life

No expiration date if the product is stored in accordance to the storage conditions as stated in this Product Data Sheet

Storage Conditions

Bundles must be stored in their original packing, laid in a horizontal position, and under cool and dry conditions. The product must be protected from direct sunlight, rain, snow and ice, and any other elements.

Dimensions

500 x 500 x 30 mm

Weight

2.0 kg/m²
Technical Information

Compressive Strength

600 kN/m²

(ASTM D695-15)

Service Temperature

- 30 °C to 80 °C

Volume

Surface Void AreaInternal Void Volume
62 %95 %

Water flow capacity

Discharge Rate @ 1% Gradient

16.5 L/m·s

Application

Application Information

Hole dimension

Perforation Size

≤ 22.5 mm Ø
Application steps

SUBSTRATE QUALITY

Clean and sound surface shall have at least a wood float finish. All holes, joints, and cracks and honeycombs in concrete or masonry surfaces shall be filled with an approved grout and allowed to cure. High spots in concrete or masonry surfaces shall be cut off or ground down to prevent damage/puncture to the drainage module.

APPLICATION

SikaRoof® VersiCell® Flex shall be loosely laid and interlocked with adjacent modules connected by proprietary in-built clips to form a continuous drainage layer without any mechanical fixing either on top of the waterproofing membrane or on top of the concrete surface. The installed drainage modules would then be covered with an approved or Sika® geotextile filter fabric before pouring the planting media over the modules.
